Wednesday, 18 January 2012 06:49

Bodyman Complete Digital Panel Repair System

The Bodyman Complete Digital Panel Repair System
Repair panels that generally have to be replaced.

The System comes complete with a Digital Bodyman A3D Dent Puller.

The fast pulling system and the panel pulling system plus a huge amount of standard accessories and features.



It is the most cost effective and affordable system on the collision repair market.







Published in Dent Repair Systems
Thursday, 05 January 2012 22:50

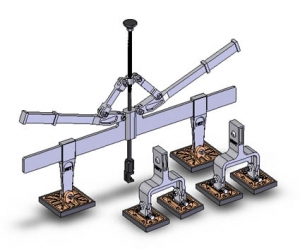

Bodyman Panel Puller

Panel Pulling System for Digital & Non Digital Dent Repair Systems.
The Bodyman Panel Puller allows you to remove dents from panels with ease.

The Panel Pulling dent removal system comes with straight & angled feet,  the  Panel Puller is great on heavy dents, such as sill panels, doglegs and other hard areas the feet support the outer area around the damage to ensure extra damage is not created.

Allowing you to easily remove a dent with a controlled pull.

The Panel Puller can give you up to 1.5Ton of pulling power.

Usable with the Bodyman A3D Digital Dent Puller, the Bodyman A3 Non Digital Dent Puller and the Bodyman Complete Dent Pulling System.



Published in Dent Repair Systems
Wednesday, 02 March 2011 03:09

Dent Repair Systems

A3D
Product info:

Digital Dent Puller

Functions: washer welding, carbon rod heating

• Microprocesser controlled, the multi-function control panel sets the spot welding parameters automatically and also allows manual adjustment of the parameters. And also allows you to adjust the parameters by manual.

• When working on top of car and narrow interior spaces the main unit is separable from the trolley.
• Automatic detection welding for operation convenience.
• Flexible 3 ways earth connecting.
• Inner fan for heat dissipation.
• Copper transformer.
• Thermal protection.
• Compact, portable.

Model: A3D
Input Voltage(50/60Hz): 230V /1ph
Charge Voltage (V): 8-9.5
Max Welding Current (A): 1300
Net Weight (kg): 42
Gross Weight (kg): 45
Dimensions (mm):L580 x W360 x H810
Input voltage can be custom made.



Product info:
Functions: washer welding, carbon rod heating.

• When working on top of car and narrow interior spaces the main unit is separable from the trolley.
• Automatically sets timing status.
• Inner fan for heat dissipation.
• Copper transformer.
• Thermal protection.
• Compact, portable.

Model: A3T
Input Voltage(50/60Hz): 230V /1ph
Charge Voltage (V): 8-9.5
Max Welding Current (A): 1300
Net Weight (kg): 39
Gross Weight (kg):43.5
Dimensions (mm): L580 x W360 x H810
Input voltage can be custom made.






Both Bodyman Dent Pullers come with a heavy duty trolley, stud welding gun, washer welding gun, studs, straight washers, twisted washers, thick wriggle wire, thin wriggle wire, claw, carbon rod, weld-on slide hammer, star washers all packed in a plastic tool box.



Suitable for washer welding, carbon rod heating, partial heating and tempering for car body dent.

• For use on car top and narrow interior space
• Automatically sets timing status
• Inner fan for heat dissipation
• Easy-to-use welding gun
• 2 function welding tip
• Copper transformer
• Thermal protection
• Compact, portable

Model: A3
Input Voltage(50/60HZ): 230V /1PH
Charge Voltage (V): 8-9.5
Max Welding Current (A): 1300
Net Weight (Kg): 28.5
Gross Weight (Kg): 33
Dimensions (mm) L440 x W280 x H280
Input voltage can be custom made.



Published in Products

http://www.bodymanautomotive.com/components/com_gk3_photoslide/thumbs_big/642662Digital_Dent_Puller.jpglink
http://www.bodymanautomotive.com/components/com_gk3_photoslide/thumbs_big/133783Manual_Dent_Puller.jpglink
http://www.bodymanautomotive.com/components/com_gk3_photoslide/thumbs_big/351400Induction_Heater.jpglink
Benches Manual Dent Puller Induction Heater
